Stress analysis of Sample 3




  1. File Information
  2. Materials
  3. Load Information
  4. Study Property
  5. Stress Results
  6. Deformation Results
  7. Design Check Results
  8. Appendix




1. File Information



Model name: Sample 3
Model location: C:\INED Website
Results location: C:\INED Website
Study name: Sample 3





2. Materials



No. Part Name Material Mass Volume
1 Sample 3 6061 Alloy 0.576028 kg 0.000213344 m^3




3. Load Information



Restraint
Restraint1 <Sample 3> on 2 Face(s) immovable (no translation).
Description:


Load
Load1 <Sample 3> on 2 Face(s) apply force -3 lb normal to reference plane Top using uniform distribution
Description:





4. Study Property



Mesh Information
Mesh Type Solid mesh
Mesher Used: Standard
Automatic Transition: Off
Include Mesh Controls: On
Smooth Surface: On
Jacobian Check: 4 Points
Element Size: 5.977 mm
Tolerance: 0.29885 mm
Quality: High
Number of elements: 15244
Number of nodes: 30298



Solver Information
Quality: High
Solver Type: FFE









5. Stress Results



Name Type Min Location Max Location
Plot1 VON: von Mises stress
28.1961 N/m^2
(-0.0751818 m,
-8.20208e-018 m,
0.0669773 m)
543455 N/m^2
(-0.14675 m,
0.05 m,
0.003 m)

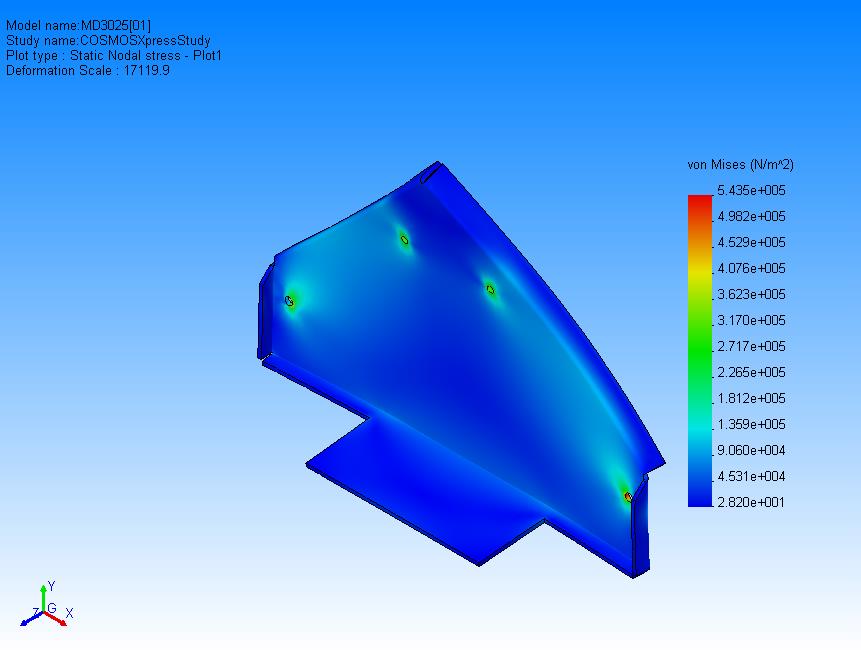

Sample 3 - Stress Plot
JPEG
VIEW







6. Deformation Results



Plot No. Scale Factor
1 17120

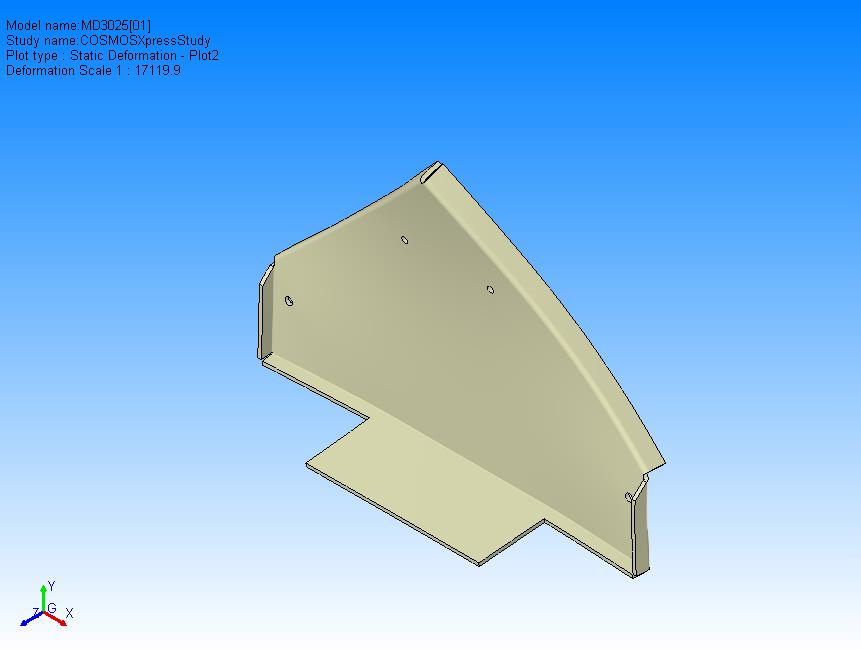

Sample 3 - Deformation Plot
JPEG
VIEW







7. Design Check Results

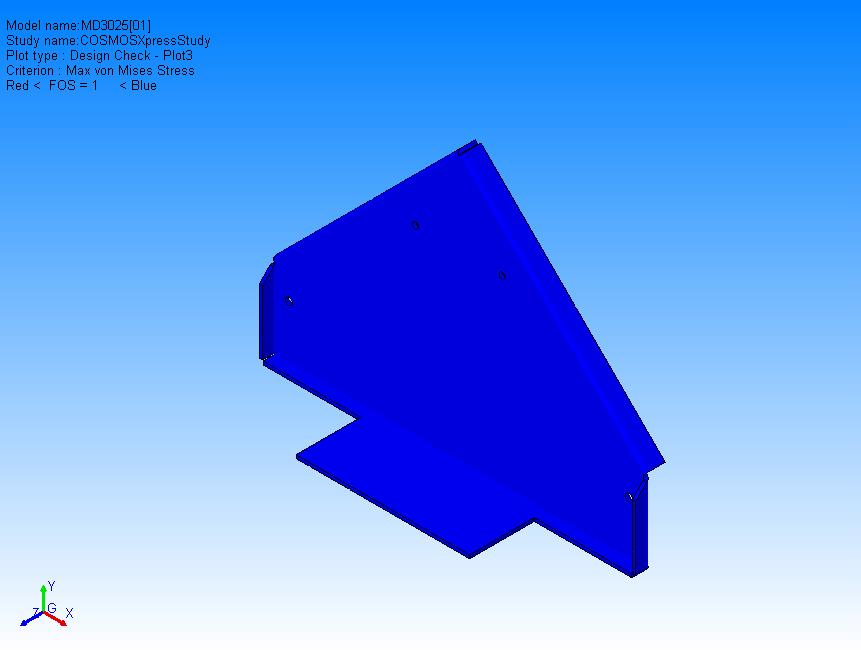

Sample 3 - Design Check Plot
JPEG
VIEW







8. Appendix



Material name: 6061 Alloy
Description:
Material Source: Library files
Material Library Name: coswkmat.lib
Material Model Type: Linear Elastic Isotropic
Unit system: SI

Property Name Value
Elastic modulus 6.9e+010 N/m^2
Poisson's ratio 0.33
Yield strength 5.5149e+007 N/m^2
Mass density 2700 kg/m^3







Note:

Design analysis results are based on linear static analysis and the material is assumed isotropic. Linear static analysis assumes that: 1) the material behavior is linear complying with Hooke’s law, 2) induced displacements are adequately small to ignore changes in stiffness due to loading, and 3) loads are applied slowly in order to ignore dynamic effects.

Do not base your design decisions solely on the data presented in this report. Use this information in conjunction with experimental data and practical experience. Field testing is mandatory to validate your final design. Finite Element Analysis helps you reduce your time-to-market by reducing but not eliminating field tests.
